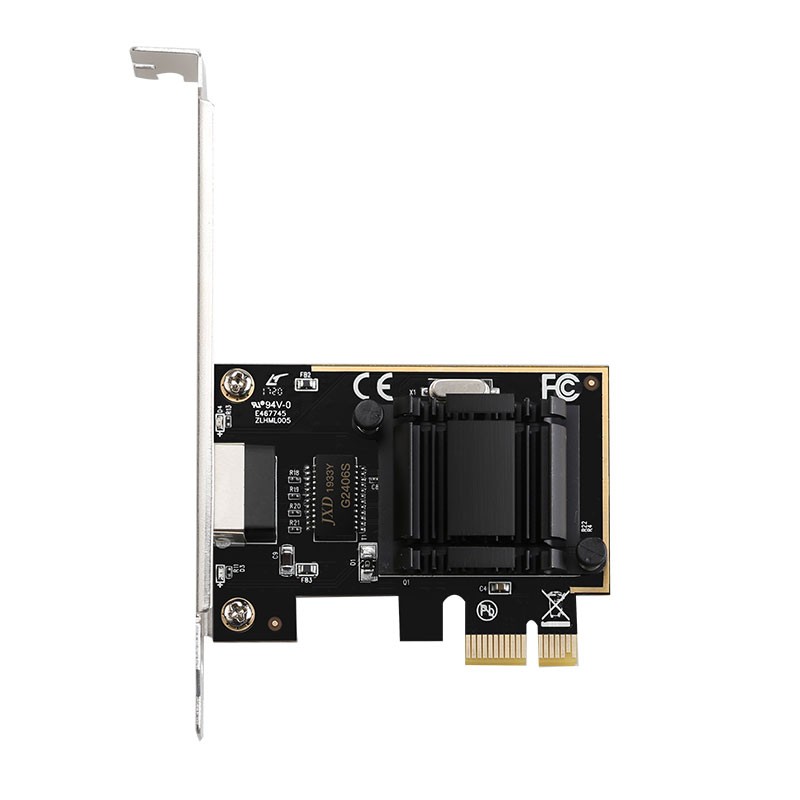

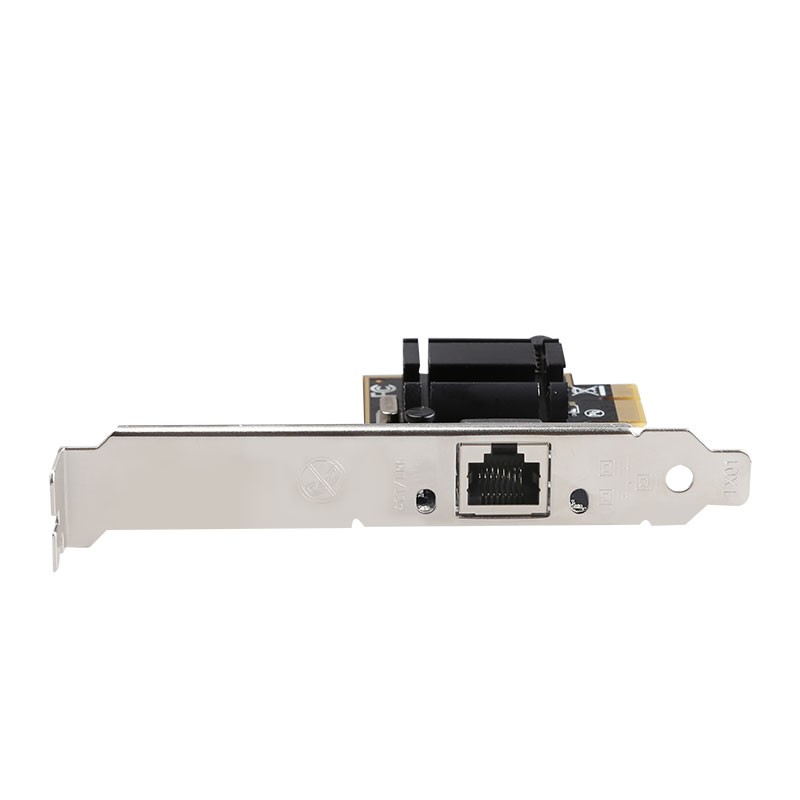

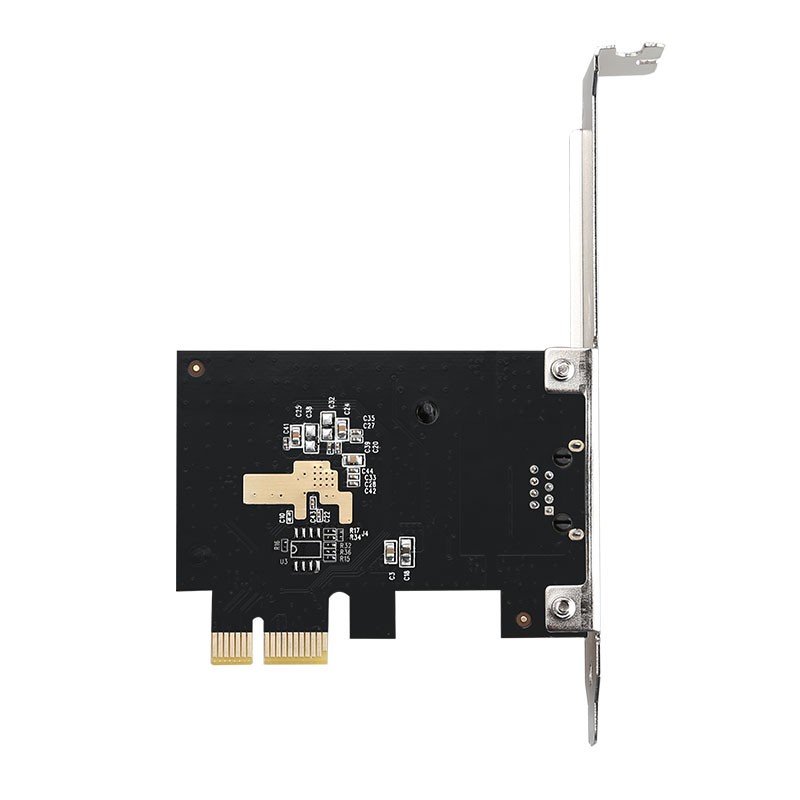

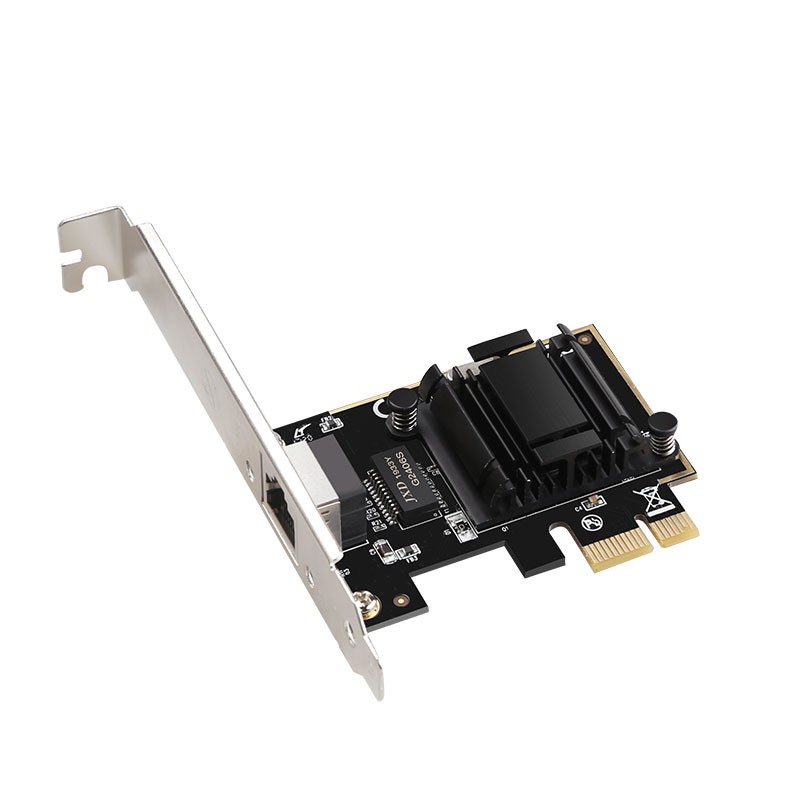

Intel I211AT 10/100/1000Mbps PCI-e x1 RJ45 Port Gigabit Ethernet Controller Card

Intel I211AT 10/100/1000Mbps PCI-e x1 RJ45 Port Gigabit Ethernet Controller Card

* A single 10/100/1000Mbps compatible RJ45 Ethernet port
* Gigabit Speed and Link/Activity LED indicators
* Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
* Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control
* Full and half duplex support
* Jumbo frame supports up to 9.5Kbytes
* Complies with Microsoft and Linux platforms

Model	YJ-A091
Chipset	Intel I211AT
Interface	PCI Express x1
Port	1 x RJ45
Transmission speed	10/100/1000Mbps
LED Indicator	LED 10/100/1000Mbps (Link/Act)
Standard	IEEE802.3, IEEE802.u, IEEE802.3ab, IEEE802.3q, IEEE802.3x
Functions	• Single Port 10/100/1000Mbps adapter • PCI Express v1.1 x1 lane • RJ45 Connectivity • Low-cost, low-power • VLAN Support • Innovative power management features • MSI,MSI-X support • Excellent small packet performance for network appliances • Low profile and full-height bracket
Support OS	Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2 Windows 7 / 8 / 8.1 / 10 / 11 Linux Stable Kernel version 2.6.x / 3.x / 4.x or later Linux SLES 10 / 11 or later VMvare ESX/ESXi 5.x/6.x or later
Environment	Operating Temperature: 0 ℃-55 ℃
	Relative Humidity: 10%-90%(non-condensing)
	Storage Temperature: -0℃-80℃
	Relative Humidity: 5%-90%(non-condensing)
